NEON FLEX
With its rich, color-changing LED pixels housed within a bendable silicone strip, our professional Neon Flex is one of the most versatile light fixtures imaginable.
Flexible LED strip lighting
Introducing ENTTEC Neon Flex: the ultimate lighting solution that combines flexibility, durability, and ease of installation. Made from high quality silicone, this waterproof LED strip is designed to handle any environment.
With its ability to bend either horizontally or vertically, ENTTEC Neon Flex allows for easy shaping and contouring, enabling you to create amazing, unique designs.
Designed for use indoors or out, Neon Flex is created using silicone, so it is more resistant to UV light and high temperatures than PVC. This means no undesirable cracking or yellowing.
We all love the amazing warmth of traditional glass neon gas tubing: think classic 1950s American diner. Modern LED flex gives you the same effect without the old environmental or safety concerns.
If your experience of flexible LED lights has been limited to “toy” strips from hardware chains or budget online sellers, you’ll be blown away by the rich colour output of ENTTEC professional LED Neon Flex.
Create truly beautiful effects. Whether you want to attract attention with bold primary colors, or have dreamy pastels melt into each other, our LED flex can conjure up any ambience you desire.
With their crisp, white profile, LED Neon Flex strips are perfect for adding a sleek, modern look to your space. Install gorgeous curves or precise straight lines to create unique architectural accents with ease.
No other light fixture provides the pliable nature of LED Neon Flex. With its ability to bend horizontally, simply shape it into long or tight curves as required, giving you the literal flexibility to realise almost any design you can imagine.
The UL Listed Mark is a tier of UL approval for stand-alone consumables that have undergone rigorous testing by Underwriters Laboratories LLC. UL Listed means the product meets internationally recognized standards for sustainability and safety.
This ENTTEC product also conforms to the following international compliance and safety standards:
Accessories
Mounting options
At ENTTEC, we know that well-considered design is key to a successful installation. Our team have created a leading range of innovative accessories with premium cabling and connectors to support your project and make specifying and installing the SMART PXL series simple. For peace of mind, our 24V and 48V accessories also feature different pinouts to prevent damage being caused when using different voltages.
Accessories
We also have a range of system accessories to suit your needs, including 3-pin male or female connectors and power injector cables. Refer to the data sheets below for more information on mounting and cabling options.
So many possibilities
LED Neon Flex is ideal for both indoor and outdoor lighting. Its versatile, durable and energy-saving nature lends itself perfectly to eye-catching signage or commercial building façades, not to mention multiple uses around your home.
You can also install it in cars, ships, museums, theme parks, nightclubs, concert venues … you name it. And when used alongside ENTTEC’s DMX or LED pixel controllers and software, your audience will be blown away.
Talk to us today and discover how ENTTEC’s professional Neon Flex can transform your project.
1. Pick your NEON FLEX style
Whether you need a horizontal or vertical bend, or a wide or focused beam angle, we have the right NEON FLEX design to suit your requirements.
2. Choose a control protocol
Each style is available with any one of the following LED protocol variants:
non-addressing
SINGLE COLOR
(24V)
non-addressing
TUNEABLE WHITE
(24V)
non-addressing
RGBW
(24V)
pixel
DMX
(24V)
pixel
SPI
(12V/24V*)
* Refer to datasheet to check which SPI voltage options are available for your chosen style.
3. Fine-tune your color temperature
A variety of color temperature options are available for each protocol*, ranging from a super-warm 2200K up to an ultra-cool 6500K.
* Refer to datasheet to check which temperature options are available for your chosen style and protocol.
4. Talk to us and we’ll make it for you!
ENTTEC’s NEON FLEX is custom-made to your unique requirements so you can be sure it’s going to be exactly what you need.
Get in touch with our friendly team today and leave the hard work to us!
Specifications

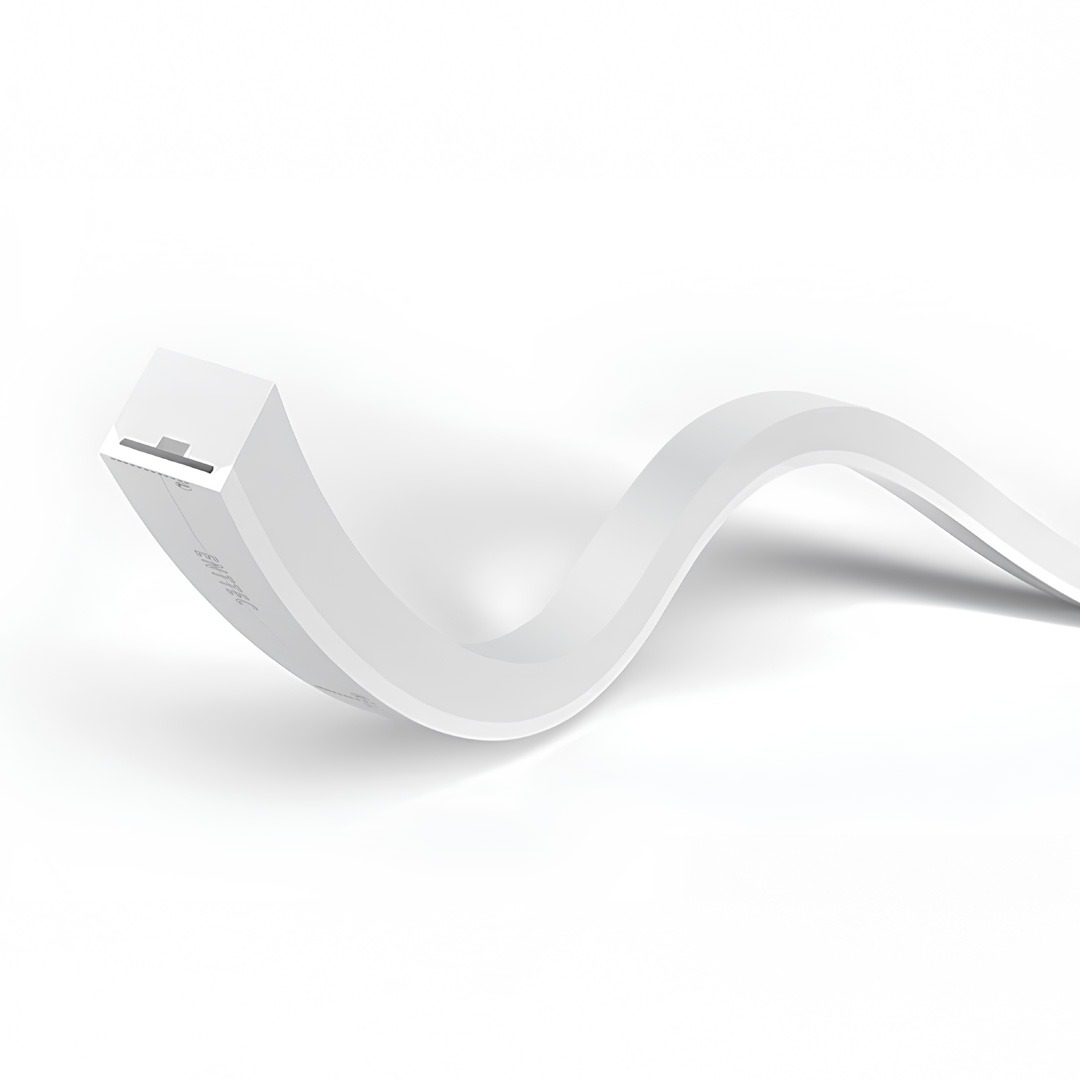

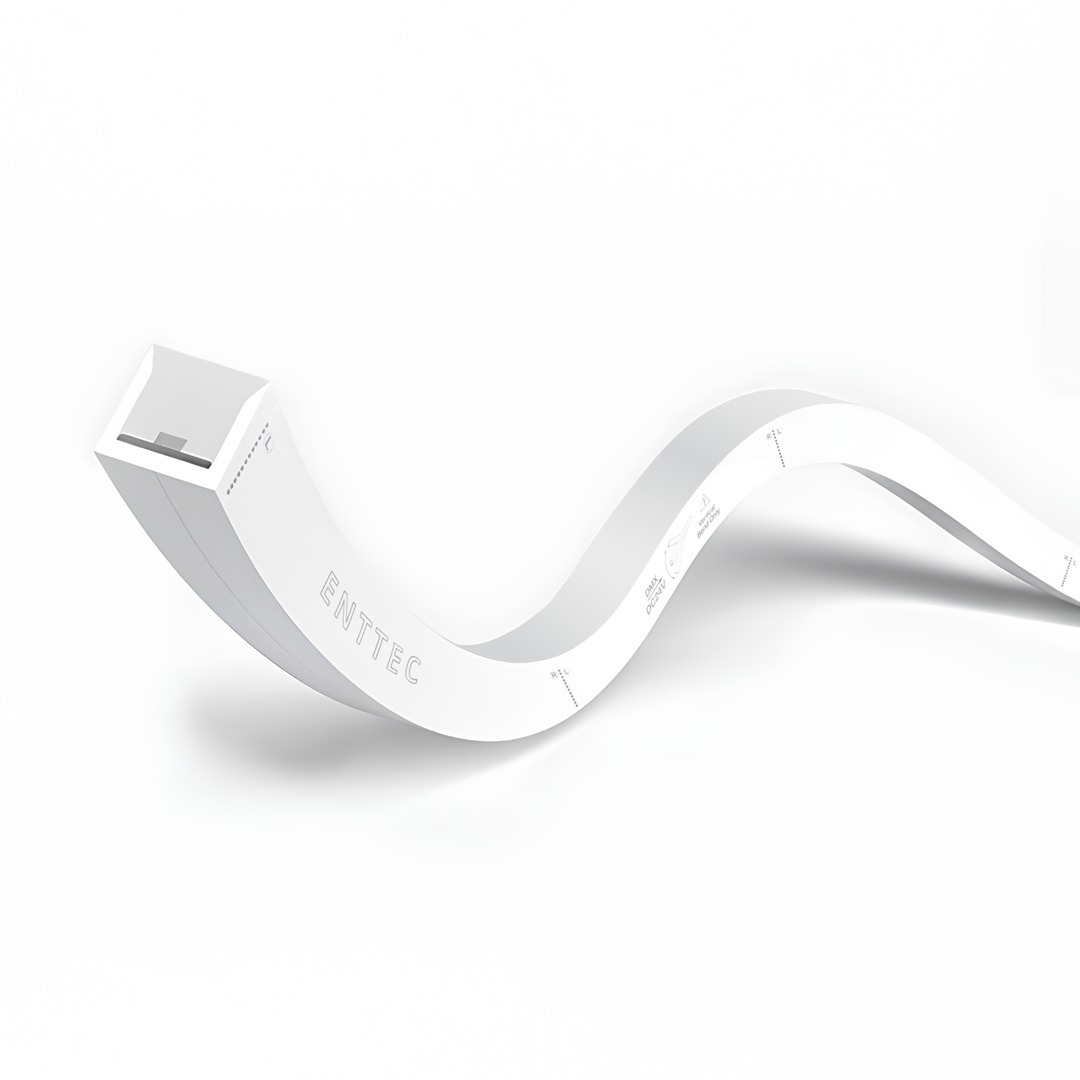

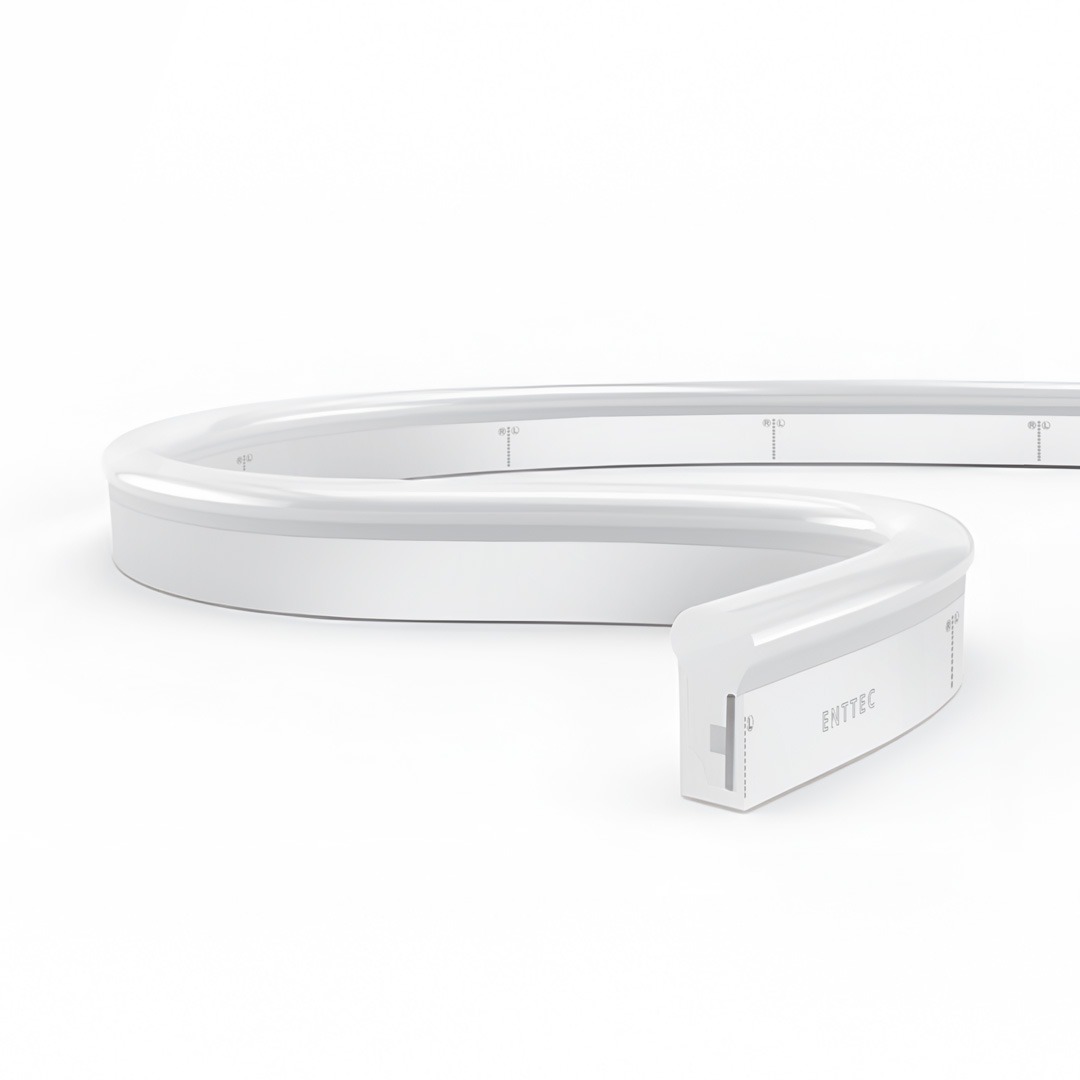

| Available styles | Five options: S1 / S2 / S3 / S4 / S5 |
| Available bending | Horizontal (S1 / S2 / S3) / Vertical (S4 / S5 |
| Available beam angle | 120° (S1 / S2 / S4) / 210° (S5) / 270° (S3) |
| Available protocols | DMX (5-pin) / SPI (3-pin) / Non-addressable single color (2-pin), tuneable white (3-pin), or RGBW (5-pin) |
| LED source | Epistar SMD LED 5050 |
| Color | RGBW (4000K) |
| LED lifetime | 70,000 hours L70 @ 25°C / 50,000 hours L70 @ 50°C |
| Body material | Silicone |
| Minimum bendable diameter | 80mm |
| IK rating | IK08 |
| IP rating | IP68 (wet location submersible <2m) |
| Temperature range | Installation: 0°C to 50°C / Operating: -40°C to 55°C |
| Connector type | IP68 twist lock connector |
| Dimension | 21mm x 11.5mm |
| Warranty | 3-year return-to-base manufacturer warranty as standard. Talk to us to arrange longer periods |
Neon Flex DMX 24V
| RGBW lumens output | 214 lm/m |
| Control protocol | DMX |
| Input voltage | 24V DC |
| Power consumption | 18W/m |
| LED count | 70 LEDs/m |
| Pixel quantity | 10 pixels/m |
| LED per pixel unit | 7 LEDs |
| Pixel unit length | 100mm |
| Max run length | Single feed: 8m / Double feed 16m |
Neon Flex SPI 12V
| RGBW lumens output | 246 lm/m |
| Control protocol | SPI – UCS8904 |
| Input voltage | 12V DC |
| Power consumption | 17W/m |
| LED count | 60 LEDs/m |
| Pixel quantity | 20 pixels/m |
| LED per pixel unit | 3 LEDs |
| Pixel unit length | 50mm |
| Max run length | Single feed: 4m / Double fed 8m |
(Refer to datasheet for detailed information and technical data relating to individual style and protocol combinations.)
Resources
NEON FLEX data sheet
NEON FLEX DMX PIXEL installation guide
NEON FLEX SPI PIXEL installation guide
NEON FLEX NON-ADDRESSABLE installation guide
NEON FLEX series images
