12V RGBW 60-LEDs/m pixel strip

12V individually-controllable 60 pixel/m RGBW pixel strip with black or white PCB. 5m roll.

SKU: 8PXA60-RGBW-12V

Overview
Features
Specifications
Resources

12V RGBW LED pixel strip for professional applications.

ENTTEC’s 8PXA60-RGBW-12V series are 12V, 60-LED-per-meter, addressable RGBW LED pixel strips designed for professional architectural and entertainment purposes, achieving soft pastels or saturated colors on a large scale.

ENTTEC LED pixel strip boasts 60 color-calibrated, individually-addressable, RGBW LEDs per meter. Each LED is patched as an individual pixel, and offers consistent brightness and extended color gamut.

With a maximum power consumption of only 21.8 watts per meter, and a lumen capacity of 1,088 lumens per meter, this 12V pixel strip provides a bright and efficient package.

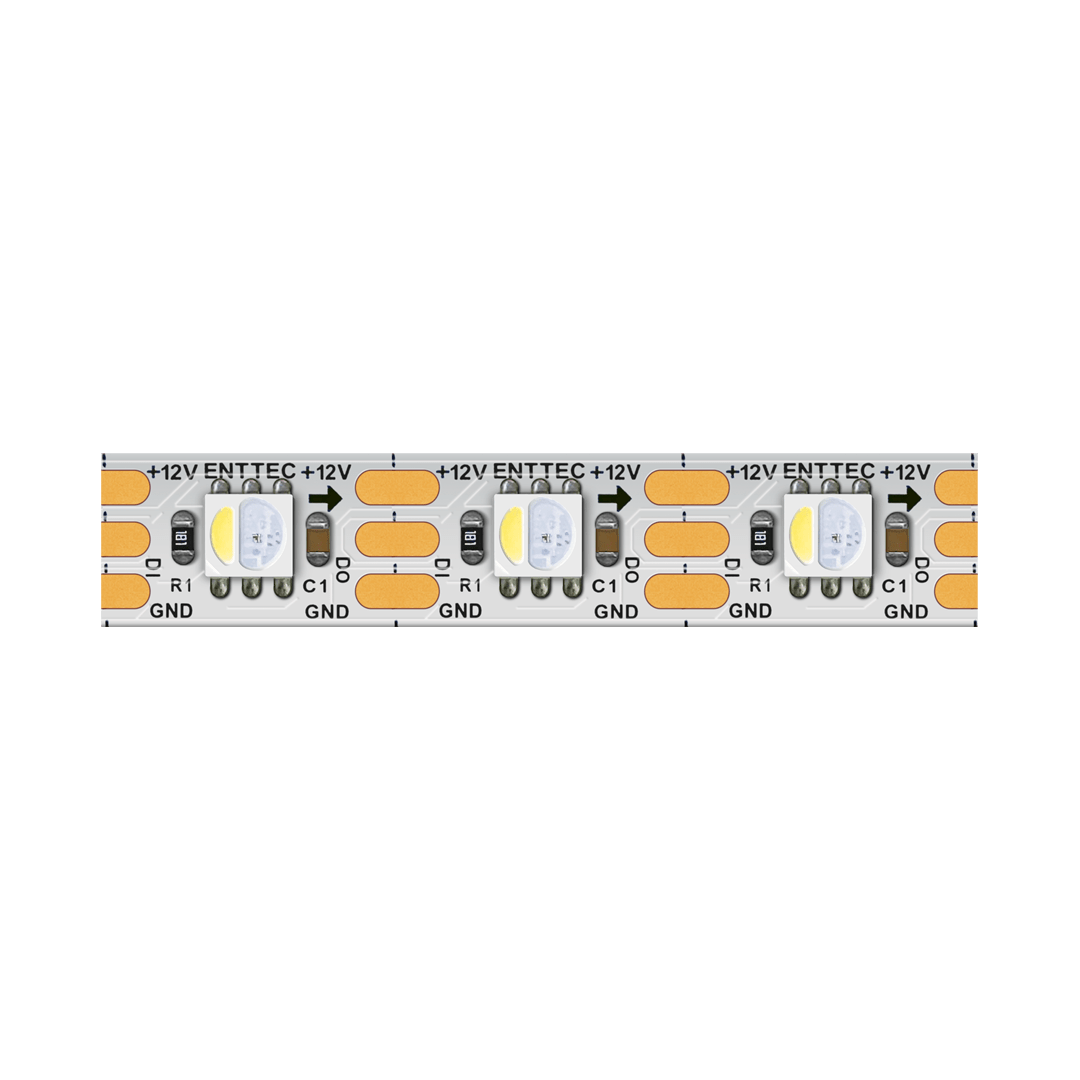

A black printed circuit board is a great way to minimise external light reflection and conceal the workings of your installation. Alternatively, a white PCB can leave your installation looking slick and clean. Simply pick whichever one best suits your needs.

Designed by ENTTEC for reliable operation in the Australian environment, our professional quality pixel strips use superior thickened copper tracks to reduce the effects of voltage drop and to allow a more even intensity along the length of the strip.

Each pixel can achieve a 32-bit, True Color display. That’s a whopping 4,294,967,296 possible colors for each LED chip.

Join two lengths together or cut them into a smaller length. You can also operate the tape from up to 300m away using the ENTTEC PLink system. This tape is recommended for indoor use only

The UL Listed Mark is a tier of UL approval for stand-alone consumables that have undergone rigorous testing by Underwriters Laboratories LLC. UL Listed means the product meets internationally recognized standards for sustainability and safety.

This ENTTEC product also conforms to the following international compliance and safety standards:

Is this the right LED strip for your project?

With such a variety of LED strips available, it can be easy to get confused as to which strip might be best suited for your requirements.

Check out this video to learn about all the main considerations you need to take into account, such as CV strip v pixel strip, voltage, protocols, RGB v RGBW, pixels per meter, PCB colour, and more.

If you’re still unsure after viewing, don’t panic – we’re always here to help you at ENTTEC. Get in touch with us and we’ll point you in the right direction!

Specifications

Connectors	2 x 3-pin JST SM connectors (3A Max)
Input voltage	12V
Max. watts per meter	21.8
Efficacy (lumens per watt)	49.82
DMX channels per pixel	4
Beam angle	120°
Control protocol	SK6805 IC chips (compatible with SK6812 protocol)
Backup data line	No
Pixel mapping order	RGBW
PCB color	Black or white options
PCB width	10mm / 0.40”
Min. bend radius	30mm / 1.2”
Spacing between cuttable sections	16.6mm / 0.66”
IP rating	IP20
Environmental operating temperature	0°C to 50°C / 32°F to 122°F
Environmental operating humidity	5- 95% (non-condensing)
Weight	(5m roll) 0.18Kg / 0.40lbs
Dimensions	(5m roll) 240 x 215 x 16mm / 9.45 x 8.47 x 0.63”
Shipping weight (5-roll carton)	0.80Kg / 1.76lbs
Shipping dimensions (5-roll carton)	260 x 225 x 93mm / 10.24 x 10.04 x 3.66”
Warranty	1-year return to base manufacturer warranty
Compliance	UL / RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
